Unitron Z-series Research Stereo Microscopes

Z10 with tilting binocular head and 10X/24mm eyepieces, 10:1 zoom ratio, on/off clickstops, 1X Plan objective, LED trans/reflected base  $4400

Z8 with same configuration   $3700

Z6 with same configuration   $3500

Z10 with binocular head and 10X/24mm eyepieces, 1X Plan objective, LED trans/reflected base  $3500

Z8 with same configuration   $2800

Z6 with same configuration   $2600

Z10 with tilting binocular head and 10X/24mm eyepieces, ball-bearing boom stand with focus mount, LED ringlight     $4500

Z8 with same configuration   $3800

Z6 with same configuration   $3600

Z10 with binocular head and 10X/24mm eyepieces, LED trans/reflected base, Beam-splitter with hi-res 8.4” LCD TFT touch screen and 2MP color digital camera  $7000

Z8 with same configuration   $6300

Z6 with same configuration   $6100

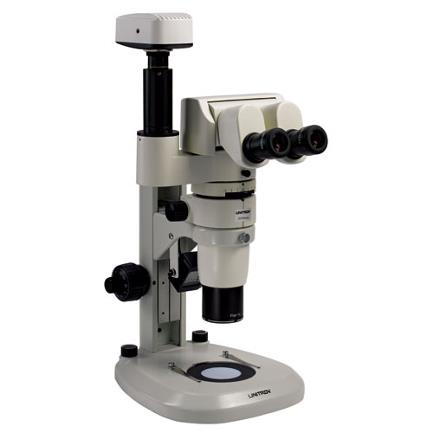

Unitron Z10 Series
Utilizing state of the art design and lens coating techniques, Unitron’s Z10 Series provides users with an ergonomically designed, high magnification, stereomicroscope series that is ideal for routine inspections, failure analysis, quality control and life science applications.

Reliability and Repeatability
With seven defined, step magnification levels on each model users are assured of consistent reproducible results for repeated examinations.

Distortion Free
Producing images that cause less strain on the users eyes was a critical consideration in the design of the Unitron Z10 Series. Typical stereo microscope images suffer from problems caused by chromatic aberration and distortion in the lens that cause surface irregularities in the image. Unitron’s Z10 Series design eliminates the problems associated with chromatic aberration and distortion allowing the user to see the specimen undistorted and in its true, authentic colors.

Ergonomic Modular Design
Designed as a modular system, the Z10 Series is offered with an Ergonomic Viewing Body (0° - 35°) or a 20° inclined binocular viewing body.

The Z10 Series features a choice of three different optical carriers. The Z10 has a magnification range of 0.8x to 8.0x, the Z8 offers a magnification range of 0.8x to 6.4x and the Z6 provides a magnification range of 0.8x to 5.0x.

A wide range of objectives are available to customize the Z10 Series for various applications. Plan achromat objectives are available in 1x (W.D. 78mm) and 2x (W.D. 32.5mm). and a 0.5x Plan Apo objective (W.D. 126mm)

The standard 10x eyepieces provide a best in class, 24mm field of view. Eyepieces are also available in 15x , 20x and 25x magnification.

Accessories
Integrating an imaging system to the Z10 Series is easy with the addition of either the single or dual port beam splitter and iris diaphragm. Accessories are available for fluorescence, simple polarization, coaxial illumination and darkfield.
