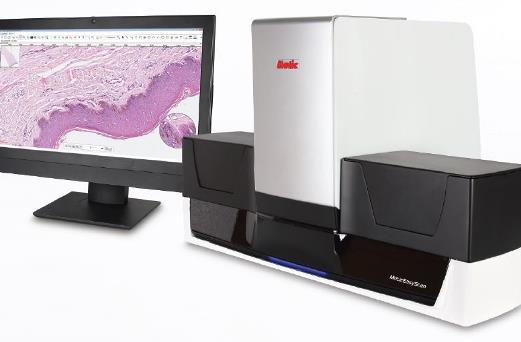

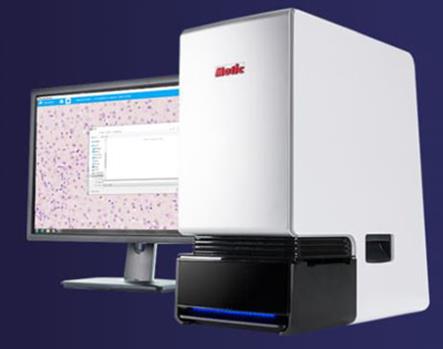

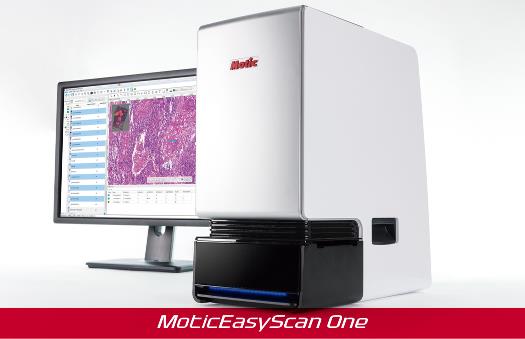

MOTIC EASYSCAN PRO 6 SLIDE SCANNER      EasyScan Infinity   One

The MoticEasyScan Pro 6 is the perfect gateway product for any lab, startup, or medical organization joining the digital revolution in pathology. Simple and easy to use, this scanner system offers 1-6 slide capacity. It scans and uploads high-quality digital slides to your slide management server, all at a single click. With its small footprint, high resolution power, and hassle-free setup, this multipurpose scanner is the ideal tool for any application that requires glass slide digitization.

The EasyScan Pro 6 is perfect for H&E’s, cytology sections, bone marrows, frozen sections, fine needle aspirations, or any histological section on a 1X3 inch or 2X3 inch glass slide. The Pro 6 is capable of 10X, 20X and 40X scans. Whether you are in private practice, hospital setting, research area, or industry this is the only scanner you need!

SPECIFICATIONS

Objectives                   Plan APOCHROMAT 20X/0.75, S Apo Objective 10X/0.3

Optical System                            CCIS®

Scanning time                              Standard mode: 160s (40X - with 20X objective)

                                                   Standard mode: 60s (20X - with 10X objective)

                                                   (15x15m - full tissue)

Resolution                   40X: 0.26μm/pixel      20X: 0.52μm/pixel

Focusing Technique    Real-time autofocus

Scanning camera                         5.0 MP (2/3" high speed Sensor)

Nosepiece                   3 hole

Light source                                 10W LED (Lifetime: 25,000 Hours)

Slide capacity                              6 Slides

Slide dimensions                         76 x 26mm

Slide tolerances (mm)                 Length: +0/-1, Width: +0/-1

Scanning mode                            Normal (Real-time autofocus)

                                                   High precision (High precision autofocus)

                                                   EDF (Extended depth of field)

                                                   Z-Stack (Three Dimensional stacking)

Barcode Support                          1D: Interleaved 2 of 5, Code 39, Code 128

                                                   2D: Data Matrix, QR Code

Computer                    Included: Dell OptiPlex 7450 All-in-One PC with 4K Resolution

                                                   Intel Core i7-7700 / 16GB Memory

                                                   128GB SSD & 1TB SATA Disk

                                                   DVD Recorder / Wireless Keyboard and Mouse

                                                   Windows 10 Professional 64-bit

Monitor                                       Included: All-in-One 23.8'' LED Monitor

Interface                                      USB 3.0

Included software                        DSAssistant, EasyScanner software (for MoticEasyScan Pro)

Optional software                        DSAConference, DSServer

Optional objective                       S Apo Objective 40X/0.75

Optional Modules                        Vet Mode (76X50mm slide)

Dimensions                                 645 x 398 x 420mm

Net weight                                  ~16 Kg.

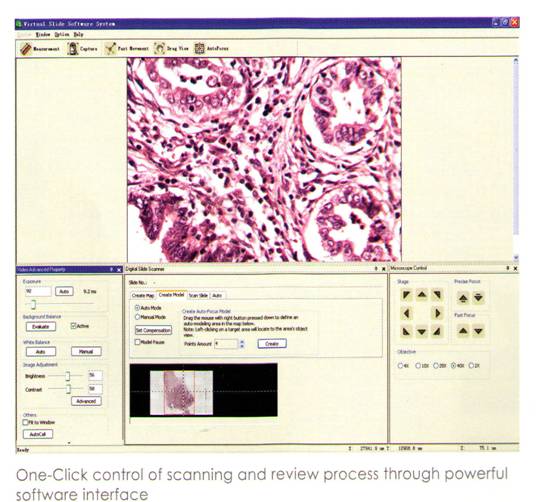

DSAssistant Software

Contains a Tab with the Digital slide library (thumbnails and basic image information), and the Tab for Slide Edition with several tools like image adjustment, annotations, measurements, encryption, image comparison, image export or conference tool for group discussions.
