INVERTED COMPOUND BIOLOGICAL MICROSCOPES

Routine and Live Cell Microscope Solution

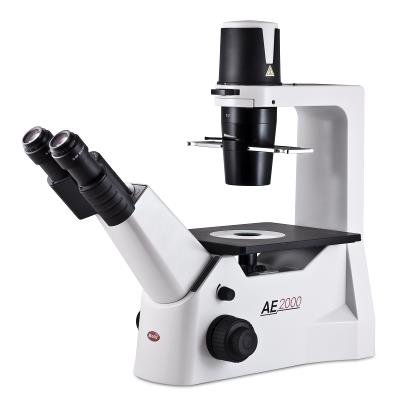

Motic´s new AE2000 Inverted Microscope is the ideal instrument for routine live cell inspection in both educational and high grade professional applications.

The uniquely integrated feature Auto cut-off mode (“sleep mode”) is focused on enhancing its performance during the rigors of daily use.

Designed for routine-lab or clinical work, as well as research requirements in Pharmaceutical Laboratories or Universities, the AE2000 is more than capable of fulfilling the expectations of its users. Superb optical quality can be expected from a brand new optical series of both bright field and phase contrast lenses, following Motic´s proven successful CCIS® Infinity Optical System.

Motic’s AE31 Elite is a refined inverted microscope with an extended focus on practical aspects.

To harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses: Only one Phase ring is needed for Phase 10X up to 40X; the objective Phase 4X for fast screening is available as an option.

The tube lens configuration is in harmony with the complete BA series of Upright microscopes. From this series, all accessories like c-mounts, additional eyepieces, etc. can be used without restriction on the AE31 Elite. A fully corrected intermediate image is ready for digital access. Upgrade options like Fluorescence and Digital Imaging are available for this Inverted microscope series.



· Trinocular head Siedentopf type, 45o inclined (Light split 100:0/20:80)

· Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces and rubber eyecups

· Side facing quintuple nosepiece CCIS Plan achromatic objective PL 4X

· CCIS Plan achromatic Phase objective PL Ph 10X, LWD PL Ph 20X

· Coaxial coarse and fine focusing adjustment

· Hard coated stage with metal and glass stage inserts

· ELWD condenser N.A. 0.30 (WD 72mm)

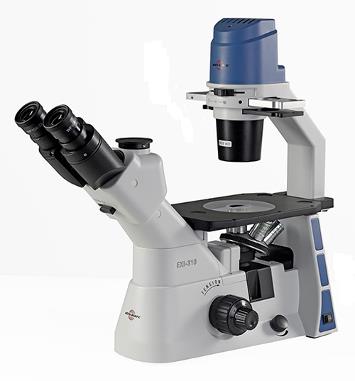

Accu-scope EXI-310 Inverted Microscope  -  new compact inverted microscope for routine and research applications.

Utilizing ACCU-SCOPE's AIS optical system and LED illumination for both diascopic and epi-fluorescence imaging, the new EXI-310 microscope offers brilliantly clear images, enabling more efficient cell culture observation and digital imaging. The streamlined design and operation enhance its use for routine laboratory work, and the compact size allows the EXI-310 to easily fit into a hood or next to an incubator.

With a wide range of objectives from 2x thru 60x, the EXI-310 offers the broadest selection of plan, plan phase and plan phase fluor objectives.

The EXI-310 microscope provides 5 watt LED-based diascopic illumination and LED epi-fluorescence illumination. The LED illumination provides reliable color reproduction, and a uniform clear image over the entire field of view (23mm).

Offering a best-in-class 4-position filer slider allowing for 3 filter cubes and 1 brightfield position, the EXI-310 is a highly versatile, compact microscope ideal for routine and research fluorescence applications.
