MOTIC Inverted Phase Contrast “Tissue Culture” Microscopes

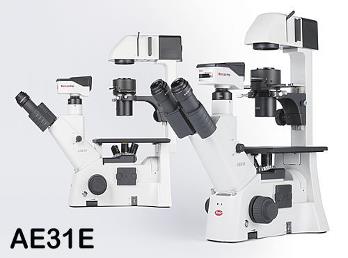

Motic Instruments is proud to launch in 2015 a new live cell microscope, the AE31 Elite, an improved and upgraded release of the established inverted model AE30/31. The AE31E is dedicated to the microbiology lab and displays Motic’s most recent improvements for reliable and reproducible image results.

The AE31E works with the newest generation of LWD Plan Achromatic lenses. Phase contrast is an integral part of the standard packages. The Phase concept requires only one Phase ring for Phase objectives 10X up to 40X; thus ensuring the proper light ring. An optional Phase 4X objective allows fast screening under low magnification.



The newly added LIGHT MEMORY function, based on an encoded 5-fold nosepiece, will recall the last light intensity setup when changing to the respective objective position. Once coordinated, there is no need to readjust the illumination power. For maximum brightness, a 100W Halogen version is available. A final instrument check before leaving the lab becomes obsolete by the AUTO ON-OFF mode via IR sensor, saving energy during standby periods in daily work.



The Motic inverted microscopes provide excellent mechanical and optical quality. The CCIS Color Corrected Infinity Optical system maximizes optical clarity and future expansion of the microscope at any time. Binocular and trinocular configurations are available, along with various phase contrast and digital imaging options. The new AE2000 value series offers a complete tissue culture configuration including 6V/30 halogen light source and typical accessories for about $2K.



PRICING



AE30E Binocular Inverted Microscope with 10X/22 eyepieces, quintuple nosepiece, Plan 4X, Plan Phase 10X and 20X, ELWD 0.30NA phase condenser, phase centering telescope, blue and green filters     from $3100



AE31E Trinocular Inverted Microscope with 10X/22 eyepieces, quintuple nosepiece, Plan 4X, Plan Phase 10X and 20X, ELWD 0.30NA phase condenser, phase centering telescope, blue and green filters       from $3500



AE2000 Binocular Inverted Microscope with individually adjustable 10X/20 eyepieces, quadruple nosepiece, Plan Phase 4X, Plan Phase 10X, ELWD 0.30NA Phase condenser, 6V/30W halogen illumination, blue and green filters

  from $2200



AE2000 Trinocular Inverted Microscope with individually adjustable 10X/20 eyepieces, quadruple nosepiece, Plan Phase 4X, Plan Phase 10X, ELWD 0.30NA Phase condenser, 6V/30W halogen illumination, blue and green filters

  from $2600























AVAILABLE ACCESSORIES

1X, 0.65X, 0.50X Camera Couplers

15X Eyepieces

40X LWD Plan objective, 40X LWD Plan Phase objective

LWD 0.50NA Condenser   (AE30/31)

Attachable Mechanical Stage with holders

35mm, 54mm, 65mm Petri dish holders, Hemacytometer holder, 1X3 slide holder

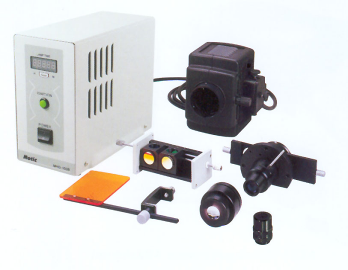

FLUORESCENCE ILLUMINATORS (AE30/31)

100W Mercury Epi-Fluorescence Attachment, with lamphouse, power supply  from $4000

Fluorescence Filter Cubes   from $850

100W mercury bulb, 300 hr lifetime  $150



OPTIONAL FLUORESCENCE ILLUMINATOR (AE30/31)                             OPTIONAL IMAGING ACCESSORIES (AE30/31)

LM75 Metal Halide Illuminator with microscope coupler   $3500         Filter Wheel/Shutter (Excitation and Emission)

Fluorescence Filter Cubes   $650 – $925 each                                           Hoffman Modulation Optics

75W MH bulb, 1500 hr lifetime  $495                                                    Multiport Accessory (for two imaging ports)





Contact for Regional Discounts

AE2000

NEW   -   add BTU8 digital microscope tablet to AE2000 or AE31 (trinocular versions) for $600 (requires

C-mount adapter). Includes 8” LCD tablet with touch screen, Android 5.X operating system, 5MP sensor, 1.83GHz (Quad Core) CPU with 16GB storage and 1GB built-in DDR3 memory, SD/MMC/TF card slot (supports up to 32GB), 4GB MicroSD card, Micro HDMI port, Bluetooth output, touch screen tilts and swivels for viewing comfort, calibration slide, Images Plus 3.0 software, Li-ion battery, USB and HDMI cables, AC adapter



FL (AE30/31)
